# Statistical Learning for Robust Topological Inference
## Ph.D. Comprehensive Examination
### .bolder[Siddharth Vishwanath]

#### 4th December, 2020

---

# Outline

### 1. Motivation
### 2. Introduction to Homology and Persistent Homology
### 3. Robust Persistence Diagrams using Reproducing Kernels <a name=cite-vishwanath2020robust></a>[[VFKS-2020b](#bib-vishwanath2020robust)]
### 4. Statistical Invariance of Betti Numbers <a name=cite-vishwanath2020statistical></a>[[VFKS-2020a](#bib-vishwanath2020statistical)]
### 5. Future Work

<div style="display:none">
$$
\newcommand{\defeq}{\stackrel{\small\bullet}{=}}
\newcommand{\ra}{\rangle}
\newcommand{\la}{\langle}
\newcommand{\norm}[1]{\left\|#1\right\|}
\newcommand{\abs}[1]{\left\lvert#1\right\rvert}
\newcommand{\Abs}[1]{\Bigl\lvert#1\Bigr\rvert}
\newcommand{\pr}{{\mathbb P}}
\newcommand{\qr}{{\mathbb Q}}
\newcommand{\xv}{{\boldsymbol{x}}}
\newcommand{\av}{{\boldsymbol{a}}}
\newcommand{\bv}{{\boldsymbol{b}}}
\newcommand{\cv}{{\boldsymbol{c}}}
\newcommand{\dv}{{\boldsymbol{d}}}
\newcommand{\ev}{{\boldsymbol{e}}}
\newcommand{\fv}{{\boldsymbol{f}}}
\newcommand{\gv}{{\boldsymbol{g}}}
\newcommand{\hv}{{\boldsymbol{h}}}
\newcommand{\nv}{{\boldsymbol{n}}}
\newcommand{\sv}{{\boldsymbol{s}}}
\newcommand{\tv}{{\boldsymbol{t}}}
\newcommand{\uv}{{\boldsymbol{u}}}
\newcommand{\vv}{{\boldsymbol{v}}}
\newcommand{\wv}{{\boldsymbol{w}}}
\newcommand{\zerov}{{\mathbf{0}}}
\newcommand{\onev}{{\mathbf{0}}}
\newcommand{\phiv}{{\boldsymbol{\phi}}}
\newcommand{\cc}{{\check{C}}}
\newcommand{\xv}{{\boldsymbol{x}}}
\newcommand{\Xv}{{\boldsymbol{X}\!}}
\newcommand{\yv}{{\boldsymbol{y}}}
\newcommand{\Yv}{{\boldsymbol{Y}}}
\newcommand{\zv}{{\boldsymbol{z}}}
\newcommand{\Zv}{{\boldsymbol{Z}}}
\newcommand{\Iv}{{\boldsymbol{I}}}
\newcommand{\Jv}{{\boldsymbol{J}}}
\newcommand{\Cv}{{\boldsymbol{C}}}
\newcommand{\Ev}{{\boldsymbol{E}}}
\newcommand{\Fv}{{\boldsymbol{F}}}
\newcommand{\Gv}{{\boldsymbol{G}}}
\newcommand{\Hv}{{\boldsymbol{H}}}
\newcommand{\alphav}{{\boldsymbol{\alpha}}}
\newcommand{\epsilonv}{{\boldsymbol{\epsilon}}}
\newcommand{\betav}{{\boldsymbol{\beta}}}
\newcommand{\deltav}{{\boldsymbol{\delta}}}
\newcommand{\gammav}{{\boldsymbol{\gamma}}}
\newcommand{\etav}{{\boldsymbol{\eta}}}
\newcommand{\piv}{{\boldsymbol{\pi}}}
\newcommand{\thetav}{{\boldsymbol{\theta}}}
\newcommand{\tauv}{{\boldsymbol{\tau}}}
\newcommand{\muv}{{\boldsymbol{\mu}}}
\newcommand{\phiinv}{\Phi^{-1}}
\newcommand{\Fiinv}{F^{-1}}
\newcommand{\giinv}{g^{-1}}
\newcommand{\fhat}{\hat{f}}
\newcommand{\ghat}{\hat{g}}
\newcommand{\ftheta}{f_\theta}
\newcommand{\fthetav}{f_{\thetav}}
\newcommand{\gtheta}{g_\theta}
\newcommand{\gthetav}{g_{\thetav}}
\newcommand{\ztheta}{Z_\theta}
\newcommand{\xtheta}{\Xv_\theta}
\newcommand{\ytheta}{\Yv_\theta}
\newcommand{\p}{\partial}
\newcommand{\f}{\frac}
\newcommand{\cf}{\cfrac}
\newcommand{\e}{\epsilon}
\newcommand{\indep}{\perp\kern-5pt \perp}
\newcommand{\inner}[1]{\langle#1\rangle}
\newcommand{\pa}[1]{\left(#1\right)}
\newcommand{\pb}[1]{\left\{#1\right\}}
\newcommand{\pc}[1]{\left[#1\right]}
\newcommand{\pA}[1]{\Big(#1\Big)}
\newcommand{\pB}[1]{\Big\{#1\Big\}}
\newcommand{\pC}[1]{\Big[#1\Big]}
\newcommand{\ty}[1]{\texttt{#1}}
\newcommand{\borel}[1]{\mathscr{B}\pa{#1}}
\newcommand{\scr}{\mathcal}
\newcommand{\scrb}{\mathscr}
\newcommand{\argmin}{\mathop{\text{arg}\ \!\text{min}}}
\newcommand{\arginf}{\mathop{\text{arg}\ \!\text{inf}}}
\newcommand{\argmax}{\mathop{\text{arg}\ \!\text{max}}}
\newcommand{\argsup}{\mathop{\text{arg}\ \!\text{sup}}}
\newcommand{\bigo}[1]{\mathcal{O}_{p}\!\left(#1\right)}
\newcommand{\f}{\frac}
\newcommand{\e}{\epsilon}
\newcommand{\inv}{^{-1}}
\newcommand{\phiinv}{\Phi^{-1}}
\newcommand{\Fiinv}{F^{-1}}
\newcommand{\giinv}{g^{-1}}
\newcommand{\fhat}{\hat{f}}
\newcommand{\ghat}{\hat{g}}
\newcommand{\ftheta}{f_\theta}
\newcommand{\fthetav}{f_{\thetav}}
\newcommand{\gtheta}{g_\theta}
\newcommand{\gthetav}{g_{\thetav}}
\newcommand{\ztheta}{Z_\theta}
\newcommand{\xtheta}{\Xv_\theta}
\newcommand{\ytheta}{\Yv_\theta}
\newcommand{\absdet}[1]{\abs{\det\pa{#1}}}
\newcommand{\jac}[1]{\Jv_{#1}}
\newcommand{\absdetjx}[1]{\abs{\det\pa{\Jv_{#1}}}}
\newcommand{\absdetj}[1]{\norm{\Jv_{#1}}}
\newcommand{\sint}{sin(\theta)}
\newcommand{\cost}{cos(\theta)}
\newcommand{\sor}[1]{S\mathcal{O}(#1)}
\newcommand{\ort}[1]{\mathcal{O}(#1)}
\newcommand{\A}{{\mathbb A}}
\newcommand{\C}{{\mathbb C}}
\newcommand{\E}{{\mathbb E}}
\newcommand{\F}{{\mathcal{F}}}
\newcommand{\N}{{\mathbb N}}
\newcommand{\R}{{\mathbb R}}
\newcommand{\Q}{{\mathbb Q}}
\newcommand{\Z}{{\mathbb Z}}
\newcommand{\X}{{\scr{X}}}
\newcommand{\Y}{{\mathbb{Y}}}
\newcommand{\G}{{\mathcal{G}}}
\newcommand{\M}{{\mathcal{M}}}
\newcommand{\betaequivalent}{\beta\text{-equivalent}}
\newcommand{\betaequivalence}{\beta\text{-equivalence}}
\newcommand{\Mb}{{\boldsymbol{\mathsf{M}}}}
\newcommand{\Br}{{\mathbf{\mathsf{Bar}}}}
\newcommand{\dgm}{{\mathbf{\mathsf{Dgm}}}}
\newcommand{\Db}{{\mathbf{\mathsf{D}}}}
\newcommand{\Img}{{\mathbf{\mathsf{Img}}}}
\newcommand{\mmd}{{\mathbf{\mathsf{MMD}}}}
\newcommand{\Xn}{{\mathbb{X}_n}}
\newcommand{\Yn}{{\mathbb{Y}_n}}
\newcommand{\Xb}{{\mathbb{X}}}
\newcommand{\Yb}{{\mathbb{Y}}}
\newcommand{\s}{{{\sigma}}}
\newcommand{\fnsbar}{{\bar{f}^n_\s}}
\newcommand{\fns}{{f^n_\s}}
\newcommand{\fs}{{f_\s}}
\newcommand{\fsbar}{{\bar{f}_\s}}
\newcommand{\barfn}{{{f}^n_\sigma}}
\newcommand{\barfnm}{{{f}^{n+m}_\sigma}}
\newcommand{\barfo}{{{f}_\sigma}}
\newcommand{\fn}{{f^n_{\rho,\sigma}}}
\newcommand{\fnm}{{f^{n+m}_{\rho,\sigma}}}
\newcommand{\fo}{{f_{\rho,\sigma}}}
\newcommand{\K}{{{K_{\sigma}}}}
\newcommand{\barpn}{{\bar{p}^n_\sigma}}
\newcommand{\barpo}{{\bar{p}_\sigma}}
\newcommand{\pn}{{p^n_\sigma}}
\newcommand{\po}{{p_\sigma}}
\newcommand{\J}{{\mathcal{J}}}
\newcommand{\B}{{\mathcal{B}}}
\newcommand{\pt}{{\tilde{\mathbb{P}}}}
\newcommand{\Winf}{{W_{\infty}}}
\newcommand{\HH}{{{\scr{H}_{\sigma}}}}
\newcommand{\D}{{{\scr{D}_{\sigma}}}}
\newcommand{\Ts}{{T_{\sigma}}}
\newcommand{\Phis}{{\Phi_{\sigma}}}
\newcommand{\nus}{{\nu_{\sigma}}}
\newcommand{\Qs}{{\mathcal{Q}_{\sigma}}}
\newcommand{\ws}{{w_{\sigma}}}
\newcommand{\vs}{{v_{\sigma}}}
\newcommand{\ds}{{\delta_{\sigma}}}
\newcommand{\fp}{{f_{\pr}}}
\newcommand{\prs}{{\widetilde{\pr}_{\sigma}}}
\newcommand{\qrs}{{\widetilde{\qr}_{\sigma}}}
\newcommand{\Inner}[1]{\Bigl\langle#1\Bigr\rangle}
\newcommand{\innerh}[1]{\langle#1\rangle_{\HH}}
\newcommand{\Innerh}[1]{\Bigl\langle#1\Bigr\rangle_{\HH}}
\newcommand{\normh}[1]{\norm{#1}_{\HH}}
\newcommand{\norminf}[1]{\norm{#1}_{\infty}}
\newcommand{\gdelta}{{\G_{\delta}}}
\newcommand{\supgdelta}{{\sup\limits_{g\in\gdelta}\abs{\Delta_n(g)}}}
\newcommand{\id}{\textup{id}}
\newcommand{\supp}{\text{supp}}
\newcommand{\cech}{\v{C}ech}
\newcommand{\Zz}{{\scr{Z}}}
\newcommand{\psis}{\psi_\s}
\newcommand{\phigox}{\Phis(\xv)-g}
\newcommand{\phigoy}{\Phis(\yv)-g}
\newcommand{\fox}{{f^{\epsilon,{\xv}}_{\rho,\sigma}}}
\newcommand{\prx}{{\pr^{\epsilon}_{\xv}}}
\newcommand{\pro}{{\pr_0}}
\newcommand{\dotfo}{\dot{f}_{\!\!\rho,\s}}
\newcommand{\phifo}{{\Phis(\yv)-\fo}}
\newcommand{\phifox}{{\Phis(\xv)-\fo}}
\newcommand{\kinf}{{\norm{\K}_{\infty}}}
\newcommand{\half}{{{\f{1}{2}}}}
\newcommand{\Jx}{\J_{\epsilon,{\xv}}}
$$
</div>

---

# Motivation
## .small[Topological Data Analysis]

---
class: center
# .left[Detecting Cosmic Voids and Filamental Structures]

.center[
<iframe src="https://rstudio.aws.science.psu.edu:3838/suv87/comps/voronoi/" width="500" height="400"></iframe>
]

Cosmic voids, discovered in the 1980s, are posited to have been formed during the Big Bang

`$\pr\pa{\# \text{ cosmic voids} \ge n} = ?$`

---
# Understanding Nanoscopic Structures

![](index_files/figure-html/unnamed-chunk-3-1.png)
.center[

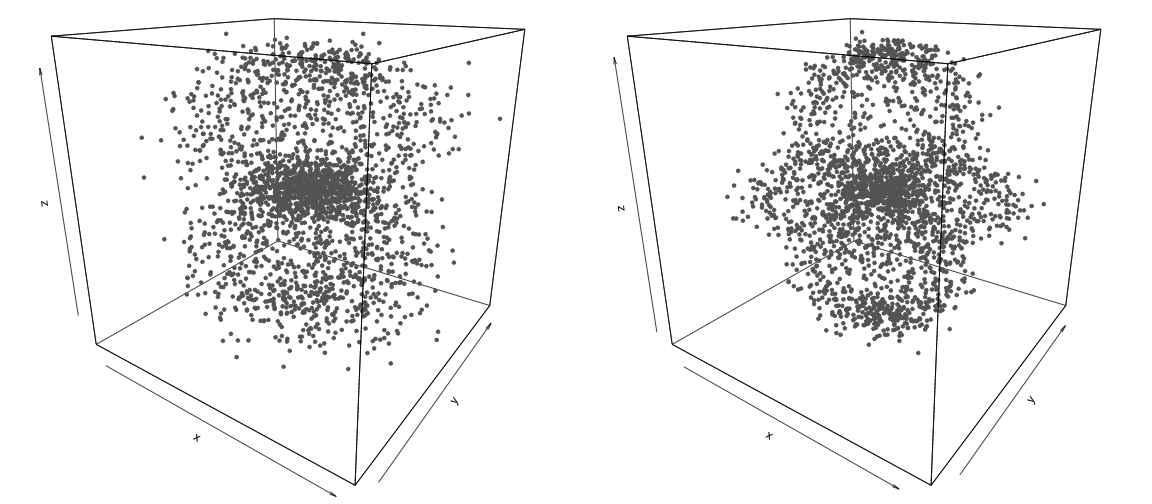

Electron clouds for the `$2p_z$` and `$3d_{z^2}$` orbitals
]
--

---

# Sufficient statistics may not suffice

---

# Introduction
## .small[Persistent Homology]

---
# .left[Defining Shape through Topology]

.center[
Given a compact set `$\color{purple}{\Xb} \subseteq \pa{\X,d}$`, what is the shape of `$\color{purple}{\Xb}$`?
]
---
count:false
class: left
# .left[Homology]

Topologically speaking, `$\color{pink}{\mathbb{Y}} \simeq \color{purple}\Xb \simeq \color{red}{\mathbb{Z}}$`.
--
&nbsp; There exists a continuous deformation `$\color{pink}{\mathbb{Y}} \rightarrow \color{purple}\Xb \rightarrow \color{red}{\mathbb{Z}}$`

---
count:false
class: center
# .left[Homology]

The fundamental invariant of the topological space is encoded in its Homology.

`$H_*\pa{\color{pink}{\mathbb{Y}}} \simeq H_*\pa{\color{purple}\Xb} \simeq H_*\pa{\color{red}{\mathbb{Z}}}$`

---
class: left
# .left[.orange[Persistent] Homology]

Given a collection of points `$\Xn = \pb{\xv_1, \xv_2, \dots, \xv_n} \subseteq \R^d$`, what is the shape of `$\Xn$`?

--
.center[
`$\Xn$` intrinsically has no shape
]

---
count:false
# .orange[Persistent] Homology

Given a collection of points `$\Xn = \pb{\xv_1, \xv_2, \dots, \xv_n} \subseteq \R^d$`, what is the shape of `$\Xn$`?
.center[
<img src="code/images/lem-r1.svg" width=550>
]

.center[
The shape of `$\Xn$` at resolution `$\e$` is encoded in `$\color{orange}{\bigcup\limits_{i=1}^n B(\xv_i,\e)}$`
]

---
count:false
# .orange[Persistent] Homology

Given a collection of points `$\Xn = \pb{\xv_1, \xv_2, \dots, \xv_n} \subseteq \R^d$`, what is the shape of `$\Xn$`?

---
class: center
count:false

The birth and death of the topological features is summarized in a .bolder[persistence diagram] `$\dgm\pa{\Xn}$`

---

# Equivalent Formulation using the Distance Function

Given `$\Xn \subset \R^d$` and `$\yv \in \R^d$`, the .bolder[distance function] to `$\Xn$` is given by `${d_{\Xn}}(\color{red}{\yv}) := \inf\limits_{\color{green}{\xv \in \Xn}}\norm{\xv-\yv}$`

The .bolder.orange[sublevel] set at resolution `$\e$` is given by `$d_{\Xn}\inv\Big([0,\e]\Big):= \pb{\yv \in \R^d: d_{\Xn}(\yv) \le \e }$`
--
`$=\bigcup\limits_{i=1}^{n}B(\xv_i,\e)$`

---

# Functional Persistence

For a .bolder.dblue[filter function] `$\phi_n$` constructed using `$\Xn$`, the shape is encoded in the superlevel set `$\phi_n\inv\pA{[\e,\infty)}$`

---
count: false
# Functional Persistence

For a .bolder.dblue[filter function] `$\phi_n$` constructed using `$\Xn$`, the shape is encoded in the superlevel set `$\phi_n\inv\pA{[\e,\infty)}$`

---
count: false
# Functional Persistence

For a .bolder.dblue[filter function] `$\phi_n$` constructed using `$\Xn$`, the shape is encoded in the superlevel set `$\phi_n\inv\pA{[\e,\infty)}$`

---
count: false
# Functional Persistence

For a .bolder.dblue[filter function] `$\phi_n$` constructed using `$\Xn$`, the shape is encoded in the superlevel set `$\phi_n\inv\pA{[\e,\infty)}$`

.center[
The resulting persistence diagram is given by `$\dgm\pa{\phi_n} = \dgm\pA{\text{Sup}\pa{\phi_n}}$`
]

---
class: center
count:true
# .left[Examples of Filter Functions ]

`$d_{\Xn}(\boldsymbol y)= \mathop{\text{inf}}\limits_{\boldsymbol \xv_i \in \mathbb X_n} || \boldsymbol{y -\xv_i} ||_2$`

---
class: center
count:false
# .left[Examples of Filter Functions ]

`$d^2_{m,n}(\boldsymbol x) = \frac{1}{k}\sum\limits_{\boldsymbol{x_i} \in \text{NN}_k(\boldsymbol{x})} || \boldsymbol x - \boldsymbol x_i ||_2^2, \hspace{1cm}$` where `$m>0$` and `$k = \lfloor mn \rfloor$`

---
class: center
count:false
# .left[Examples of Filter Functions ]

`$\fns(\yv) = \f{1}{n}\sum\limits_{i=1}^{n}\K(\yv,\xv_i), \hspace{1cm}$` where `$\sigma > 0$` and `$\K$` is a kernel

---

# .small[Robust Persistence Diagrams using Reproducing Kernels]
## .tiny.tiny.tiny[S.V., Fukumizu, Kuriki, Sriperumbudur. *Advances in Neural Information Processing Systems 33* (2020)]

---
# Statistical Setting

* Given `$\Xn = \pb{\Xv_1,\Xv_2,\dots,\Xv_n}$` sampled i.i.d. from `$\pr$`, the filter function `$\phi_n$` is a .dblue[random] function

--
 * The population analogue, `$\phi_{\pr}$`, encodes the topology underlying `$\pr$`

--
* As a result, `$\dgm\pa{\phi_n} \in \pA{\mathfrak{D},\Winf}$` is a .bolder.dblue[random persistence diagram]

--
.pull-left[
<img src="images/intro/twocircles.svg" width="300 ",height="300">

]
.pull-right[
<img src="images/intro/wasserstein.svg" width="300",height="300">

]

.center[
`$W_\infty(\color{#1E90FF}{\textbf{D}_1},\color{orange}{\textbf{D}_2}) = \inf\limits_{\gamma: \color{#1E90FF}{\textbf{D}_1} \rightarrow \color{orange}{\textbf{D}_2}}\sup\limits_{\color{#1E90FF}{x \in \textbf{D}_1}} || x - \gamma(x) ||_\infty$`
]

---
count: false
# Stability `$\neq$` Robustness

.content-box-psu3[<body> .bolder[Theorem.] <a name=cite-cohen2007stability></a><a name=cite-chazal2016structure></a>[[3](#bib-cohen2007stability); [4](#bib-chazal2016structure)]: Given two tame filter functions `$f$` and `$g$`, `$W_{\infty}\Big( \dgm(f), \dgm(g) \Big) \le ||f-g||_{\infty}$` </body>]

.pull-left[
<img src="code/images/signal.svg", height="350">
]
.pull-right[<img src="code/images/signal-dgm.svg", height="350">
]

---
count: false
# Stability `$\neq$` Robustness

.content-box-psu3[<body> .bolder[Theorem.] [[3](#bib-cohen2007stability); [4](#bib-chazal2016structure)]: Given two tame filter functions `$f$` and `$g$`, `$W_{\infty}\Big( \dgm(f), \dgm(g) \Big) \le ||f-g||_{\infty}$` </body>]

.pull-left[
<img src="code/images/signal1.svg", height="350">
]
.pull-right[<img src="code/images/signal1-dgm.svg", height="350">
]

---
count: false
# Stability `$\neq$` Robustness

.pull-left[
<img src="code/images/X.svg", height="350">
]
.pull-right[<img src="code/images/X-dgm.svg", height="350">
]

---
count: false
# Stability `$\neq$` Robustness

.center[.content-box-orange[Can we construct robust persistence diagrams without compromising on statistical efficiency?]]

.pull-left[
<img src="code/images/X.svg", height="350">
]
.pull-right[<img src="code/images/X-dgm.svg", height="350">
]

---

# Robust Persistence Diagrams

* `$K_\sigma$` is a radial kernel and `$\mathcal{H}_\sigma$` is its reproducing kernel Hilbert space

* Given `$\mathbb X_n$` and a robust loss `$\rho: \mathbb{R}_+ \rightarrow \mathbb R_+$` the robust KDE <a name=cite-kim2012robust></a>[[5](#bib-kim2012robust)] is given by

.content-box-grey[<body>
$$
f^n_{\rho,\sigma} \stackrel{\small\bullet}{=} \mathop{\text{arg inf}}\limits_{g \in \mathcal{H}_\sigma}\displaystyle\int\limits_{\mathbb R^d}\rho\Big( || g - K_\sigma(\cdot,\boldsymbol{y}) ||_{\mathcal{H}_\sigma} \Big) \ d\mathbb{P}_n(\boldsymbol{y}) = \sum\limits_{i=1}^n w_\sigma(\boldsymbol{X_i}) K_\sigma(\cdot,\boldsymbol{X_i})
$$ </body>]

* The .dblue.bolder.text-shadow[<body> weight function `$w_\sigma$` </body>] weighs-down outliers, and is the *fixed point* of the equation

`\begin{align}
w_\s(\Xv_i)= \f{\varphi(\Vert\Phis(\Xv_i)-f_{\rho,\s}^n\Vert_{\HH})}{\sum_{j=1}^{n}{\varphi(\Vert\Phis(\Xv_j)-f_{\rho,\s}^{n}\Vert_{\HH})}}, \ \ \ \ \ \text{ where } \varphi(z) = \f{\rho'(z)}{z}
\end{align}`

* `$\fn$` and `$w_\sigma$` .dorange[do not] have closed form solutions.
  * But, they can be solved via iteratively reweighted least squares

---

# Robust Persistence Diagrams

* `$K_\sigma$` is a radial kernel and `$\mathcal{H}_\sigma$` is its reproducing kernel Hilbert space

* Given `$\mathbb X_n$` and a robust loss `$\rho: \mathbb{R}_+ \rightarrow \mathbb R_+$` the robust KDE [[5](#bib-kim2012robust)] is given by

* When `$\rho(z) = z^2$`, we recover the classic KDE
--

.content-box-grey[<body>
$$
f^n_{\sigma} = \mathop{\text{arg inf}}\limits_{g \in \mathcal{H}_\sigma}\displaystyle\int\limits_{\mathbb R^d} || g - K_\sigma(\cdot,\boldsymbol{y}) ||^2_{\mathcal{H}_\sigma} \ d\mathbb{P}_n(\boldsymbol{y}) = \sum\limits_{i=1}^n \f{1}{n} K_\sigma(\cdot,\boldsymbol{X_i})
$$ </body>]

---
count: false
# Robust Persistence Diagrams

* `$K_\sigma$` is a radial kernel and `$\mathcal{H}_\sigma$` is its reproducing kernel Hilbert space

* Given `$\mathbb X_n$` and a robust loss `$\rho: \mathbb{R}_+ \rightarrow \mathbb R_+$` the robust KDE [[5](#bib-kim2012robust)] is given by

.content-box-grey[<body>
$$
f^n_{\rho,\sigma} = \mathop{\text{arg inf}}\limits_{g \in \mathcal{H}_\sigma}\displaystyle\int\limits_{\mathbb R^d}\rho\Big( || g - K_\sigma(\cdot,\boldsymbol{y}) ||_{\mathcal{H}_\sigma} \Big) \ d\mathbb{P}_n(\boldsymbol{y}) = \sum\limits_{i=1}^n w_\sigma(\boldsymbol{X_i}) K_\sigma(\cdot,\boldsymbol{X_i})
$$ </body>]

* The population counterpart is

.content-box-grey[<body>
$$
f_{\rho,\sigma} \stackrel{\small\bullet}{=} \mathop{\text{arg inf}}\limits_{g \in \mathcal{H}_\sigma}\displaystyle\int_{\mathbb R^d}\rho\Big( || g - K_\sigma(\cdot,\boldsymbol{y}) ||_{\mathcal{H}_\sigma} \Big) \ d\mathbb{P}(\boldsymbol{y})
$$ </body>]

--
.center[
.content-box-orange[<body> `$\dgm(f^n_{\rho,\sigma}) = \dgm\big( \text{Sup}(f^n_{\rho,\sigma}) \big)$` is the robust persistence diagram </body>]
]

---

# Illustration

`$\dgm\pa{\fns}$` | `$\Xn$` | `$\dgm\pa{\fn}$`
--- | --- | ----
<img src="code/images/kde-dgm.svg", width="290"> | <iframe src="https://rstudio.aws.science.psu.edu:3838/suv87/comps/kde/" width="290" height="290"></iframe> | <img src="code/images/rkde-dgm.svg", width="290">

---
class: center, middle
count: false

# Sensitivity Analysis
## .orange[(Part I)]

---

# Sensitivity Analysis using Influence Functions

* Given a .bolder.dblue[statistical functional] `$T: \mathcal{P}\pa{\X} \rightarrow \pa{V, \norm{\cdot}_V}$`:
    - Takes a probability measure `$\pr \in \mathcal{P}(\X)$` on the input space `$\X$`
    - Produces a statistic `$\pr \mapsto T(\pr)$` in some normed space `$\pa{V, \norm{\cdot}_V}$`

* The .bolder.dblue[influence function] associated with `$\xv \in \X$` is given by

.content-box-blue.center[<body>
$$
\text{IF}(T; \mathbb P, \boldsymbol x) = \lim\limits_{\epsilon \rightarrow 0}\frac{1}{\epsilon}\Big( T(\mathbb{P}^{\epsilon}_{\boldsymbol x}) - T(\mathbb P) \Big)
$$

.center[ where `$\mathbb{P}^{\epsilon}_{\boldsymbol x} = (1-\e)\pr + \e \delta_{\xv}$` is a perturbation of `$\mathbb P$` by adding `$\epsilon$` amount of mass at `$\boldsymbol{x}$` ]
</body>]

* `$\text{IF}(T; \mathbb P, \boldsymbol x)$` is the .orchid.bolder[Gâteaux derivative] along the perturbation curve `$\mathbb{P}^{\epsilon}_{\boldsymbol x}$`
--

* A persistence diagram, `$\dgm\pa{\phi_{\pr}}$` is a statistical functional taking values in the space `$(\mathfrak{D}, W_{\infty})$`
--

* But, `$(\mathfrak{D}, W_{\infty})$`, is not a normed space 🙁 `$\hspace{.5cm}$`
--
 `$\hspace{.5cm}$` Generalize via metric derivative 🙂

---

# Sensitivity Analysis in .scriptsize[ `$\pa{\mathfrak{D},\Winf}$` ]
* Given a filter function, `$\phi_{\pr}$`, and `$\xv \in \R^d$`, the .dblue.bolder[persistence influence] is given by
.center[
.content-box-blue[<body>
$$
\Psi\Big( \phi_{\mathbb P}; \mathbb{P}, \boldsymbol{x} \Big) \stackrel{\small\bullet}{=} \lim\limits_{\epsilon \rightarrow 0}\frac{1}{\epsilon} W_{\infty}\Big( \dgm\big(\phi_{\mathbb{P}^{\epsilon}_{\boldsymbol x}}\big), \dgm\big( \phi_{\mathbb P} \big) \Big)
$$
</body>]

]
--

* Sensitivity analysis for `$\dgm\pa{\fo}$`, `$\dgm\pa{\fs}$` and `$\dgm\pa{d_{\pr,m}}$`
.theorem1[For a robust loss `$\rho$`, bandwidth `$\sigma > 0$`, and smoothing parameter `$m > 0$`:
1. **RKDE:** .center[<body>
`$\Psi\Big( f_{\rho,\sigma}; \mathbb{P}, \boldsymbol{x} \Big) \le \sigma^{-d/2} \color{#1058ad}{\boldsymbol{w_{\sigma}(\boldsymbol x)}} || K(\cdot,\boldsymbol{x}) - f_{\rho,\sigma} ||_{\mathcal{H}_\sigma}$`
</body>]

1. **KDE:** .center[<body>
`$\Psi\Big( f_{\sigma}; \mathbb{P}, \boldsymbol{x} \Big) \le \sigma^{-d/2} || K(\cdot,\boldsymbol{x}) - f_{\sigma} ||_{\mathcal{H}_\sigma}$`
</body>]

1. **DTM:** .center[<body>
`$\Psi\Big( d_{m}; \mathbb{P}, \boldsymbol{x} \Big) \le \frac{2}{\sqrt{m}} \sup \Big\{ \big\vert f(\boldsymbol x) - \int f(\boldsymbol y)d\mathbb{P}(\boldsymbol{y}) \big\vert : || \nabla f ||_{L_2(\mathbb P)} \le 1 \Big\}$`
</body>]

</body>]

.tiny[<body> `$\color{#1058ad}{\boldsymbol{w_{\sigma}(\boldsymbol x)}}$` weighs down outliers </body>]

---

# Proof of Theorem 1

* For the KDE, `$\fs = \int\K(\cdot,\yv) \ d\pr(\yv)$`, the result follows from using (I.) The stability of persistence diagrams [[3](#bib-cohen2007stability); [4](#bib-chazal2016structure)], and (II.) the dual formulation of `$\norm{\cdot}_{\HH}$`
--

* For the DTM, `$d_{\pr,m}$`, the stability also guarantees <a name=cite-chazal2011geometric></a>[[6](#bib-chazal2011geometric)]
.center[<body>
`$\Winf\pA{\dgm\pa{d_{\pr,m}},\dgm\pa{d_{\qr,m}}} \lesssim W_2(\pr,\qr)$`.
</body>]
The result follows from examining the metric derivative of the perturbation curve, `$\prx$`, as a geodesic in Wasserstein space `$\mathcal{W}_2(\R^d)$`
--

* For the RKDE, `$\fo$` does not admit a closed form solution. We first show that the risk functional

$$
\J(g) \defeq \displaystyle\int\rho\pa{\normh{\K(\cdot,\yv) - g}}d\pr(\yv)
$$

is .red[equi-coercive] and .red[<body> `$\Gamma$`-convergent. </body>]
--
&nbsp; From stability and the fundamental theorem of `$\Gamma$`-convergence

`\begin{align}
\lim\limits_{\epsilon \rightarrow 0}\frac{1}{\epsilon} W_{\infty}\Big( \dgm\big(\fox\big), \dgm\big( \fo \big) \Big) \le \lim\limits_{\epsilon \rightarrow 0}\frac{1}{\epsilon} \norminf{\fox-\fo} \le \norminf{\lim\limits_{\epsilon \rightarrow 0}\frac{1}{\epsilon} \pa{\fox - \fo}} = \norminf{\dotfo}
\end{align}`

The result follows from a careful analysis of `$\dotfo$`

---

# Is .footnotesize[<body> `$\dgm\pa{\fn}$` </body>] robust in practice?

### .orange[Experiment]

* `$\color{green}{\Xn}$` is sampled from a signal, and we construct the persistence diagram `$\color{green}{\dgm\pa{\phi_n}}$`
--

* Outliers `$\color{#db43d5}{\mathbb{Y}_m(r)}$` are added at a distance `$r$` away from the support of `$\color{green}{\Xn}$`

* The persistence diagram `$\color{#db43d5}{\dgm\pa{\phi_{n+m}}}$` is constructed on the composite sample `$\color{green}{\Xn} \cup \color{orchid}{\Yb_m(r)}$`
--

* The empirical .dblue[persistence influence]

`\begin{align}
\Winf\pA{\color{green}{\dgm\pa{\phi_n}},\color{#db43d5}{\dgm\pa{\phi_{n+m}}}}
\end{align}`

is computed for different values of `$r$`

---
count: false
# Is .footnotesize[<body> `$\dgm\pa{\fn}$` </body>] robust in practice?

.pull-left[
<img src="images/influence/bottleneck.svg", width="500">
]
--
.pull-right[
<img src="images/influence/dtm-bottleneck.svg", width="500">
]

---

# Statistical Analysis
## .orange[(Part II)]

---

# Consistency and Confidence Bands

.theorem2[
Given `$\mathbb X_n$` observed i.i.d. from `$\mathbb P$` with density `$f$`, a bandwidth `$\sigma > 0$`, and convex loss `$\rho$`

.center[
`$W_{\infty}\Big( \textbf{Dgm}\big(f^n_{\rho,\sigma}\big), \textbf{Dgm}\big( f_{\rho,\sigma} \big) \Big) \stackrel{p}{\longrightarrow} 0$` `$\hspace{0.5cm}$` as `$n \rightarrow \infty$`
]
Furthermore,

.center[
`$W_{\infty}\Big( \textbf{Dgm}\big(f_{\rho,\sigma}\big), \textbf{Dgm}\big( f \big) \Big) \longrightarrow 0$` `$\hspace{0.5cm}$` as `$\sigma \rightarrow 0$`
]

]

--
.bolder.text-shadow[.large[Confidence Band:]]

.content-box-red[.bolder.text-shadow[Definition.] For `$\Xn$` sampled i.i.d. from `$\pr$`, a signficance `$\alpha \in (0,1)$`, and a corresponding `$\delta_n(\alpha)$` the set
`\begin{align}
\mathcal{C}_\alpha \defeq \pB{D \in \pa{\mathfrak{D},\Winf} : \Winf\pa{D, \dgm\pa{\phi_n}} \le \delta_n(\alpha)}
\end{align}`
is a `$(1-\alpha)$`-.bolder.text-shadow[confidence set] in the space of persistence diagrams if
`\begin{align}
\pr^{\otimes n}\pB{\dgm\pa{\phi_{\pr}} \in \mathcal{C}_{\alpha}} \ge 1-\alpha
\end{align}`
`$\boldsymbol{\delta_n(\alpha)}$` determines a .bolder.text-shadow[confidence band] `$\mathcal{B}_{\alpha} \defeq \Delta \oplus \delta_n(\alpha)$` in the space `$\pa{\mathfrak{D},\Winf}$`
]

---
count: false
class: center
# .left[Consistency and Confidence Bands]

.pull-left[
`$\mathcal{C}_\alpha = \pB{D : \Winf\pa{D, \dgm\pa{\phi_n}} \le \delta_n(\alpha)}$`
<img src="code/images/conf-ex.svg", width="500">
]
--
.pull-right[
`$\mathcal{B}_{\alpha} = \Delta \oplus \delta_n(\alpha)$`
<img src="code/images/band-ex.svg", width="500">
]

---

# Statistical Efficiency

.bolder.text-shadow[Assumption:] For `$a_\sigma > 1$` and `$p \in (0,1)$`, the entropy numbers of `$K_\sigma$` satisfy `$e_n(\mathcal H_\sigma) \le a_\sigma n^{-{1}/{2p}}$`
--

* `$e_n(\mathcal H_\sigma)$` provides a handle for the covering numbers of the unit ball `$\mathfrak{B}_\HH(\zerov,1)$` in the RKHS
--

.content-box-blue[.bolder.text-shadow[Example.] If `$\supp\pa{\pr} \subset \R^d$` with `$\text{diam}\pa{\supp\pa{\pr}} = r$`, and `$\K$` is `$m$`-times differentiable, then
`\begin{align}
e_n(\mathcal H_\sigma) \le c r^m n^{-m/d},
\end{align}`
with `$p = \f{d}{2m}$`. This leads to the following observations:

1. In order to ensure statistical efficiency `$\K$` has to be sufficiently smooth

1. If `$d\!\uparrow \ \Longrightarrow \  p \uparrow$`

1. If `$m\!\uparrow \ \Longrightarrow \   p \downarrow$`
]

---
count: false
# Statistical Efficiency

.bolder.text-shadow[Assumption:] For `$a_\sigma > 1$` and `$p \in (0,1)$`, the entropy numbers of `$K_\sigma$` satisfy `$e_n(\mathcal H_\sigma) \le a_\sigma n^{-{1}/{2p}}$`

.theorem3[
Given `$\mathbb X_n$` observed i.i.d. from `$\mathbb P$` with density `$f$`, a bandwidth `$\sigma > 0$`, and a convex loss `$\rho$` :

With probability greater than `$1- \alpha$`, and uniformly over `$\mathbb P$`
`\begin{align}
W_{\infty}\Big( \textbf{Dgm}\big(f^n_{\rho,\sigma}\big), \textbf{Dgm}\big( f_{\rho,\sigma} \big) \Big) \le 2C \sigma^{-d/2} \Bigg( \xi(n,p) + \sqrt{\frac{2\log(1/\alpha)}{n}} \Bigg)
\end{align}`
where
`\begin{align}
 \xi(n,p) = \begin{cases} \mathcal{O}(n^{-1/2}) & \text{ if } p \in (0,\frac{1}{2})\\
 \mathcal{O}(n^{-1/2} \log n) & \text{ if } p = \frac{1}{2}\\
 \mathcal{O}(n^{-1/4p}) & \text{ if } p \in (\frac{1}{2},1)
 \end{cases}
\end{align}`

]

.footnotesize[
Recall that `$d\!\uparrow \Longrightarrow p\!\uparrow$` and `$m\!\uparrow \Longrightarrow p\!\downarrow$`
]

---
count: true
# Proof of Theorem 3

### Part 1: Strong convexity of the risk functional

* Let the loss functional be denoted by `$\ell_g(\xv) \defeq \rho\pa{\normh{\K(\cdot,\xv) - g}}$`

* Recall the risk functional `$\J(g)$` given by
$$
\J(g) \defeq \displaystyle\int\ell_g(\yv)d\pr(\yv)
$$

--
* If the robust loss `$\rho(\cdot)$` is convex and `$M$`-Lipschitz (and some other technical assumptions)
  1. `$\J(g)$` is strictly convex, and `$M$`-Lipschitz
  1. `$\J(g)$` is **strongly convex** around its minimizer `$\fo \defeq \arginf_{g \in \HH}\J(g)$`,

---
count: false
# Proof of Theorem 3

### Part 2: Analysis of the Empirical Process

* The empirical risk functional `$\J_n(g)$` is given by `$\J_n(g) = \f{1}{n}\sum_{i=1}^{n}\ell_g(\Xv_i)$`

* `$\J(g)$` and `$\J_n(g)$` can be written as the empirical processes `$\pr\ell_g$` and `$\pr_n\ell_g$` respectively

* We define the .bolder[fluctuation process], as the empirical processs given by

`\begin{align}
\Delta_n(g) \defeq \pr_n\pa{\ell_g - \ell_{\fo}} - \pr\pa{\ell_g - \ell_{\fo}}
\end{align}`

--
* We show that the concentration of `$\fn$` near `$\fo$` in `$\normh{\cdot}$` is controlled by the **tail behaviour** of the fluctuation process `$\Delta_n(g)$`, i.e.,

.content-box-blue[
`\begin{align}
\pr^{\otimes n}\pB{\Xv_{1:n} : \normh{\fn - \fo} > \delta} \le \pr^{\otimes n}\pB{\Xv_{1:n} : \sup_{g \in \gdelta}\abs{\Delta_n(g)} > \f{\mu}{2}\delta^2}
\end{align}`
]

where `$\gdelta = \pb{g \in \HH : \normh{g - \fo} \le \delta}$`

---
count: false
# Proof of Theorem 3

### Part 3: Controlling the Fluctuation Process

* `$\sup_{g \in \gdelta}\abs{\Delta_n(g)}$` is the supremum of an empirical process
--

* Using McDiarmid's inequality and the generalized entropy bound, with probability `$\ge 1 - e^{-t}$`

`\begin{align}
\sup_{g \in \gdelta}\abs{\Delta_n(g)} \le M\delta \xi(n,p) + M\delta\sqrt{\f{2t}{n}}
\end{align}`

and from part 2,

`\begin{align}
\normh{\fn - \fo} \le \f{2M}{\mu}\pA{\xi(n,p) + \sqrt{\f{2t}{n}}}
\end{align}`
--

* Using the fact that `$\norminf{h} \le \sigma^{-d/2}\normh{h}$` and the stability of persistence diagrams we obtain the final result `$\blacksquare$`

---
class: center
# .left[Uniform Confidence Band]

.pull-left[
`$\Xn$`
<img src="code/images/points-extreme.svg", width="500">
]
.pull-right[
`$\dgm\pa{\fn}$`
<img src="code/images/dgm-extreme.svg", width="500">
]

---

# Experiments
## .orange[(Part III)]

---
class: center
# .left[Signal from Noise]

* .orchid[<body> `$\Xn$` ( `$\large\bullet$` ) </body>] is sampled i.i.d. from .orchid[<body> `$\pr_{\text{signal}}$` </body>] and `$\Yb_m$` ( `$\large\circ$` ) is sampled i.i.d. from `$\pr_{\text{noise}}$`, with `$\f{m}{n} = \pi \in (0,\half)$`
* `$\color{red}{\Db_\s}$` & `$\color{#3e9cfa}{\Db_{\rho,\s}}$` are the diagrams of `$\Xn \cup \Yb_m$` using `$\fns$` & `$\fn$`, and `$\Db^\#$` is the diagram from the KDE on `$\Xn$`
.pull-left[
<img src="images/expts/cloud.svg", width="320">

`$\color{#db43d5}\Xn \cup \Yb_m$`
]
--
.pull-right[
<img src="images/expts/box2.svg", width="320">

`$\color{#3e9cfa}{\Winf\pa{\Db_{\rho,\s},D^\#}}$` and `$\color{red}{\Winf\pa{\Db_\s,D^\#}}$`
]
.center[
`$\pi = 30\%$` and `$\boldsymbol{p} = 4 \times 10^{-60}$`
]
---
count: false
class: center
# .left[Signal from Noise]

* .orchid[<body> `$\Xn$` ( `$\large\bullet$` ) </body>] is sampled i.i.d. from .orchid[<body> `$\pr_{\text{signal}}$` </body>] and `$\Yb_m$` ( `$\large\circ$` ) is sampled i.i.d. from `$\pr_{\text{noise}}$`, with `$\f{m}{n} = \pi \in (0,\half)$`
* `$\color{red}{\Db_\s}$` & `$\color{#3e9cfa}{\Db_{\rho,\s}}$` are the diagrams of `$\Xn \cup \Yb_m$` using `$\fns$` & `$\fn$`, and `$\Db^\#$` is the diagram from the KDE on `$\Xn$`
.pull-left[
<img src="images/expts/cloud.svg", width="320">

`$\color{#db43d5}\Xn \cup \Yb_m$`
]
.pull-right[
<img src="images/expts/box3.svg", width="320">

`$\color{#3e9cfa}{\Winf\pa{\Db_{\rho,\s},D^\#}}$` and `$\color{red}{\Winf\pa{\Db_\s,D^\#}}$`
]
.center[
`$\pi = 40\%$` and `$\boldsymbol{p} = 2 \times 10^{-72}$`
]

---
count: false
class: center
# .left[Signal from Noise]

* .orchid[<body> `$\Xn$` ( `$\large\bullet$` ) </body>] is sampled i.i.d. from .orchid[<body> `$\pr_{\text{signal}}$` </body>] and `$\Yb_m$` ( `$\large\circ$` ) is sampled i.i.d. from `$\pr_{\text{noise}}$`, with `$\f{m}{n} = \pi \in (0,\half)$`
* `$\color{red}{\Db_\s}$` & `$\color{#3e9cfa}{\Db_{\rho,\s}}$` are the diagrams of `$\Xn \cup \Yb_m$` using `$\fns$` & `$\fn$`, and `$\Db^\#$` is the diagram from the KDE on `$\Xn$`
.pull-left[
<img src="images/expts/cloud.svg", width="320">

`$\color{#db43d5}\Xn \cup \Yb_m$`
]
.pull-right[
<img src="images/expts/box4.svg", width="320">

`$\color{#3e9cfa}{\Winf\pa{\Db_{\rho,\s},D^\#}}$` and `$\color{red}{\Winf\pa{\Db_\s,D^\#}}$`
]
.center[
`$\pi = 50\%$` and `$\boldsymbol{p} = 2.5 \times 10^{-75}$`
]

---

# Unsupervised Learning

* `$25$` point-clouds are sampled from each of `$6$` objects:
 * Classes: `cube, circle, sphere, torus, 3clust, 3clustIn3clust`
 * Points are sampled with additive Gaussian noise (SD=0.1) and ambient Matérn cluster noise
--

* For each point-cloud `$\mathbb X_n^{(i)}, i= 1, \dots, 150$` we compute
 * Robust persistence diagram: `$\Db^{(i)} = \dgm\pa{\fn}$`
 * Stable vectorization of non-robust diagram: `$\Img^{(i)} = \Img\pA{\dgm\pa{d_n}; h}$`, using the distance function `$d_n$` for `$h=0.1$` <a name=cite-adams2017persistence></a>[[7](#bib-adams2017persistence)]
--

* Pairwise distance matrices `$\Delta_1,\Delta_2$` are computed on `$\Db^{(i)}$` and `$\Img^{(i)}$` for `$i = 1,\dots,150$`, i.e.,
 * `$\Delta^{ij}_1 = \Winf\pa{\Db^{(i)},\Db^{(j)}}$` and `$\Delta^{ij}_2 = \norminf{\Img^{(i)} - \Img^{(j)}}$`
--

* Spectral clustering is performed on `$\Delta_1$` and `$\Delta_2$`, and the quality is assessed using the Rand index

.content-box-blue[Distance Matrix | `$\Delta_1$` | `$\Delta_2$`
--- | --- | ----
Rand Index | `$94.44\%$` | `$79.78\%$`
]

---

# Supervised Learning : Classification

* For each image `$\mathcal{I}$` from the `mpeg7` dataset, the boundary `$\partial\mathcal{I}$` is extracted using Laplace convolution

* `$\Xn$` is sampled from the distribution `$0.85\times\text{Unif}\pa{\p\mathcal I} + 0.15 \times \text{Unif}(\mathcal I)$`

* For fixed `$\s, m > 0$` we compute `$\dgm\pa{\fn}$`, `$\dgm\pa{\fns}$` and `$\dgm\pa{d_{n,m}}$` using `$\Xn$`

* SVM is trained on persistence images `$\Img\pa{\dgm;h}$` for varying `$h$` so as to classify the images `$\mathcal I$`

`$\Xn$` when `$\mathcal I = \texttt{bone}$` | `$3$`-class SVM | `$5$`-class SVM
--- | --- | ----
<img src="images/expts/bone.svg", width="290"> | <img src="images/expts/3-class-lines.svg", width="290"> | <img src="images/expts/5-class-lines.svg", width="290">

---

# Supervised Learning : Prediction

* For `$\boldsymbol{N} \sim \text{Unif}\pb{1,2,\dots,5}$`, we generate random circles `$\mathbb S_1 \dots \mathbb S_{\boldsymbol N} \subset [0,2]^2$`

* `$\Xn$` is sampled i.i.d. from `$\half\text{Unif}\pb{\mathbb S_1 \cup \dots \cup \mathbb S_{\boldsymbol N}} + \half \text{Unif}\pa{[0,2]^2}$`

* `$\Db_\s$` and `$\Db_{\rho,\s}$` are computed from `$\Xn$` using `$\fns$` and `$\fn$`

* SVM is trained on vectorizations `$\Img\pa{\Db_\s;h}$` and `$\Img\pa{\Db_{\rho,\s};h}$` for varying `$h$` to predict `$\boldsymbol N$`

`$\Xn$` when `$\boldsymbol{N}=5$` | Bandwidth `$\s_1$` | Bandwidth `$\s_2$`
--- | --- | ----
<img src="images/expts/n23.svg", width="290"> | <img src="images/expts/lines-k5.svg", width="290"> | <img src="images/expts/lines-k7.svg", width="290">

---

# .small[Future Work]

---

# Efficient and Robust Persistence Diagrams

* In practice, `$\dgm\pa{\phi}$` is computed using .bolder[cubical homology] on a grid `$G(r)$` of resolution `$r$`

* The topological accuracy becomes sensitive to the choice of grid resolution `$r$`

* Computing `$\dgm\pa{\phi}$` is prohibitively expensive in high-dimensions. Space complexity is `$\mathcal O(r^{-d})$`

---
count: true
# Efficient and Robust Persistence Diagrams

### .orange.bolder[Solution \#1:]
* Compute the sublevel/superlevel filtration using the .bolder[nerve of the cover] for `$\Xn$` directly <a name=cite-bobrowski2017topological></a>[[8](#bib-bobrowski2017topological)]

`\begin{align}
\pB{\yv \in G(r) : \phi_n(\yv) \ge \epsilon } \rightarrow \mathcal{K}\pA{\pb{\Xv_i \in \Xn : \phi_n(\Xv_i) \ge \epsilon}, \delta}
\end{align}`
--

---
count: false
# Efficient and Robust Persistence Diagrams

### .orange.bolder[Solution \#1:]
* Compute the sublevel/superlevel filtration using the .bolder[nerve of the cover] for `$\Xn$` directly [[8](#bib-bobrowski2017topological)]

`\begin{align}
\pB{\yv \in G(r) : \phi_n(\yv) \ge \epsilon } \rightarrow \mathcal{K}\pA{\pb{\Xv_i \in \Xn : \phi_n(\Xv_i) \ge \epsilon}, \delta}
\end{align}`

---
count: true
# Efficient and Robust Persistence Diagrams

### .orange.bolder[Solution \#2:]
* Use weighted-Rips filtrations <a name=cite-anai2019dtm></a>[[9](#bib-anai2019dtm)] induced by `$\fn$` to construct a RKDE-filtration `$\dgm\pa{\Xn,\fn}$`

* For `$\epsilon > 0$`, fixed `$p \ge 1$`, and a function `$\phi: \R^d \rightarrow \R_+$`, the .bold[<body> `$\boldsymbol\phi$`-power-radius </body>] of `$\xv$` is given by

`\begin{align}
r_{\xv,\phi,p}(\e) = \pa{\e^p - \phi(\xv)^p}^\f{1}{p}
\end{align}`

* The .bolder.text-shadow[resulting weighted filtration] is given by

`\begin{align}
\mathbb F\text{ilt}(\Xn,\phi) = \pB{\bigcup_{i=1}^nB(\xv_i,r_{\xv_i,\phi,p}(\e))}_{0 < \e < \infty}
\end{align}`

* The .dblue.bolder.text-shadow[weighted Rips-filtration] is the .bolder.text-shadow[nerve] of the weighted filtration `$\mathbb F\text{ilt}(\Xn,\phi)$`

---
count: false
# Efficient and Robust Persistence Diagrams

---
count: false
# Efficient and Robust Persistence Diagrams

---
count: true
# Efficient and Robust Persistence Diagrams

### .orange.bolder[Solution \#3:]

* Construct a robust persistence diagram using a robust Median-of-Means (MoM) filtration

* Suppose `$\Xn$` is partitioned into `$\pb{S_q}_{q=1}^Q$` disjoint blocks, and `$\pr_q$` is the empirical measure for `$S_q$`

* We propose using a .dblue.bolder.text-shadow[MoM kernel distance] as the filter function, given by

.content-box-blue[
`\begin{align}
  D^n_{Q,\s}(\xv) = \text{median}\pB{\normh{\mu_{\delta_\xv} - \mu_{\pr_q}}}_{q=1}^{Q}
\end{align}`
]

* .bold[Advantage:] `$D^n_{Q,\s}$` has `$\mathcal{O}(n)$` computational cost as opposed to `$\mathcal{O}(n\ell)$` for `$\fn$`

.center[
.content-box-orange[<body> `$\dgm\pa{D^n_{Q,\s}} = \dgm\pa{\text{Sub}\pa{D^n_{Q,\s}}}$` is the proposed robust MoM persistence diagram </body>]
]

---

# .small[Statistical Invariance of Betti Numbers]
## .tiny.tiny.tiny[<body> S.V., Fukumizu, Kuriki, Sriperumbudur. arXiv:2001.00220 (2020) </body>]

---
count: false
layout: true
class: split-five with-border border-black

.column[.content[
.split-five[
.row.bg-main1[.content.center.vmiddle[
# Space
]]
.row.bg-main2[.content.center[
## Circle
]]
.row.bg-main3[.content.center[
## Sphere
]]
.row.bg-main4[.content.center[
## Torus
]]
.row.bg-main5[.content.center[
## `$3d_{z^2}$`
]]
]]]
.column[.content[
.split-five[
.row.bg-main1[.content.center.vmiddle[
# Shape
]]
.row.bg-main2[.content.center[
<img src="images/regimes/circle.svg" width="100",height="100">
]]
.row.bg-main3[.content.center[
<img src="images/regimes/sphere.svg" width="100",height="100">
]]
.row.bg-main4[.content.center[
<img src="images/regimes/torus.svg" width="100",height="100">
]]
.row.bg-main5[.content.center[
<img src="images/regimes/orbital.png" width="100",height="100">
]]
]]]
.column[.content[
.split-five[
.row.bg-main1[.content.center.vmiddle[
# `$\beta_0$`
]]
.row.bg-main2[.content.center[
## 1
]]
.row.bg-main3[.content.center[
## 1
]]
.row.bg-main4[.content.center[
## 1
]]
.row.bg-main5[.content.center[
## 1
]]
]]]
.column[.content[
.split-five[
.row.bg-main1[.content.center.vmiddle[
# `$\beta_1$`
]]
.row.bg-main2[.content.center[
## 1
]]
.row.bg-main3[.content.center[
## 0
]]
.row.bg-main4[.content.center[
## 2
]]
.row.bg-main5[.content.center[
## 1
]]
]]]
.column[.content[
.split-five[
.row.bg-main1[.content.center.vmiddle[
# `$\beta_2$`
]]
.row.bg-main2[.content.center[
## 0
]]
.row.bg-main3[.content.center[
## 1
]]
.row.bg-main4[.content.center[
## 1
]]
.row.bg-main5[.content.center[
## 3
]]
]]]

---
count: false
class: fade-row2 fade-row3 fade-row4 fade-row5 gray-row2 gray-row3 gray-row4 gray-row5

---
count: false
class: fade-row3 fade-row4 fade-row5 gray-row3 gray-row4 gray-row5

---
count: false
class: fade-row2 fade-row4 fade-row5 gray-row2 gray-row4 gray-row5

---
count: false
class: fade-row2 fade-row3 fade-row5 gray-row2 gray-row3 gray-row5

---
count: false
class: fade-row2 fade-row3 fade-row4 gray-row2 gray-row3 gray-row4

---
layout: false
# Random Topology

* What are the properties of these **.dblue[random]** topological summaries?
`\begin{align}
\text{(LLN)} & & \lim\limits_{n\rightarrow \infty}\frac{1}{n}\beta_k\left( \mathcal{K}(\mathbb{X}_n,r) \right) = \color{#db43d5}{\gamma_k(\mathbb{P})} \ \ \text{a.s.} \hspace{2cm}\\ \\
\text{(CLT)} & & \lim\limits_{n\rightarrow \infty}\frac{\beta_k\left( \mathcal{K}(\mathbb{X}_n,r) \right) - \mathbb{E}(\beta_k\left( \mathcal{K}(\mathbb{X}_n,r) \right))}{\sqrt{n}}  \sim \color{#db43d5}{\mathcal{N}(0,\sigma^2)}
\end{align}`

---
layout: true
class: left,split-three

# Random Topology

* For `$\mathbb{X}_n$` observed iid from `$\mathbb{P}$`, a simplicial complex, `$\mathcal{K}(\mathbb{X}_n,r)$`, is a random-variable measurable w.r.t. `$\mathbb{P}^{\otimes n}$`
 * The Betti numbers, `$\beta_k \left( \mathcal{K}(\mathbb{X}_n,r) \right) : \mathcal{X}^n \rightarrow \mathbb{N}$`, are topological summaries
* What are the properties of these **.dblue[random]** topological summaries?
 * .orchid[<body> The asymptotic behaviour of `$\mathcal{K}(\mathbb{X}_n,r_n)$` depends on `$r_n = r(n)$` </body>]

.column[.content[

.center[
Dense
<img src="images/regimes/dense.gif" width="300",height="300">
`$nr_n^d \rightarrow \infty$`
]
]]

.column[.content[

.center[
Sparse
<img src="images/regimes/sparse.gif" width="300",height="300">
`$nr_n^d \rightarrow 0$`
]
]]

.column[.content[

.center[
Thermodynamic
<img src="images/regimes/thermodynamic.gif" width="300",height="300">
`$nr_n^d \rightarrow t \in (0,\infty)$`
]
]]

---

---
class: show-100
count: false

---

---
class: show-111
count: false

---
layout: false
count: false

# Statistical Invariance of Betti Numbers

* Consider a family of distributions* `$\mathcal{P} = \{\mathbb{P}_\theta : \theta \in \Theta \}$` and `$\mathbb{X}^\theta_n = \{\mathbf{X}^\theta_1,\mathbf{X}^\theta_2,\dots,\mathbf{X}^\theta_n\} \sim \mathbb{P}_\theta$` for `$\theta \in \Theta$`

.content-box-blue[
`\begin{align}
\mathbf{S}(\mathbb{P}_{\theta}^{\otimes n})\!:= \mathbf{S}(\mathbb{X}^\theta_n)\!= \frac{1}{n} \Big( \beta_0\big( \mathcal{K}(\mathbb{X}^\theta_n,r_n) \big), \beta_1\big( \mathcal{K}(\mathbb{X}^\theta_n,r_n) \big), \dots , \beta_d\big( \mathcal{K}(\mathbb{X}^\theta_n,r_n) \big) \Big)
\end{align}`
]

As `$n \rightarrow \infty$` and `$nr_n^d \rightarrow t$`, the **.dblue[thermodynamic limit]** is the statistical functional
`\begin{align}
\mathbf{S}(\mathbb{P}_\theta; t) = \lim_{n \rightarrow\infty}\mathbf{S}(\mathbb{P}_{\theta}^{\otimes n})
\end{align}`

* **.dblue.bolder.text-shadow[Statistical invariance.]**
.center[<body> `$\bbox[20px, border: 2px solid orange]{ \text{For } \theta_1,\theta_2 \in \Theta, \text{ can we have that } \lim\limits_{n\rightarrow \infty}\mathbf{S}(\mathbb{P}_{\theta_1}^{\otimes n}) {=} \lim\limits_{n\rightarrow \infty}\mathbf{S}(\mathbb{P}_{\theta_2}^{\otimes n}) \text{ ? } }$`</body>]

.content-box-blue[
**.bolder.text-shadow[Definition.]** `$\mathcal{P} = \{\mathbb{P}_\theta : \theta \in \Theta \}$` is said to admit .dorange.bolder[<body> `$\beta$`-equivalence </body>] if `$\mathbf S(\mathbb{P}_\theta; t) = \eta(t)$` for all `$\theta \in \Theta$`
]

---
count: true

# Statistical Invariance of Betti Numbers

1. .bolder[<body> Can we characterize .dblue[necessary and sufficient] conditions for invariance à la `$\beta$`-equivalence? </body>]
--

 * Yes. When `$\mathcal{P}$` has some algebraic structure, i.e.,
 .center[<body>
 `$\mathcal{P}$` is generated by a parametrized group `$\G = \pb{g_\theta: \theta \in \Theta}$`
 </body>]
 `$\mathcal{P}$` admits `$\beta$`-equivalence .bolder.text-shadow[iff] the PDFs satisfy a Jacobian constraint w.r.t. the `$\G$`-maximal invariant
--

1. .bolder[<body> If we relax the algerbraic constraint, can we characterize .dblue[ sufficient] conditions for `$\beta$`-equivalence? </body>]
--

 * Yes. When `$\X$` admits a smooth fiber bundle structure, i.e.,
 .center[<body>
 `$\mathfrak{X} = \mathcal{Y} \rightarrow \X \stackrel{\pi}{\hookrightarrow} \scr{Z}$`, with base manifold `$\scr{Z}$` and canonical fiber space `$\mathcal{Y}$`
 </body>]
 We can transport mass along the fibers `$\mathcal{Y}_{\zv}$` using the local-trivializations such that it preserves the excess mass function. This, in turn, guarantees `$\beta$`-equivalence.
--

1. .bolder[<body> Given `$\mathcal P = \{\mathbb{P}_\theta : \theta \in \Theta \}$`, is there a simple way to .dblue[verify] if `$\mathcal P$` admits `$\beta$`-equivalence? </body>]
--

 * Yes. If `$\mathcal P$` satisfies standard *stochastic regularity assumptions*, it suffices to check the following orthogonality condition for the score function

`\begin{align}
\Inner{p_{\theta}^k, \f{\partial}{\partial \theta}\log p_\theta}_{L^2(\X)} = 0, \ \ \ \forall k \in \N_0
\end{align}`

---
